SatSim Viewer

Use applications/satsim_viewer to inspect GeoTIFF scenes and SatNav VLN episodes interactively.

Mode	Purpose
free	Move freely in one GeoTIFF and inspect coordinates, heading, and altitude
task	Inspect RGB, instructions, waypoints, top-down maps, and metrics by episode

See SatSim observations for altitude, field of view, heading, and real-scene camera comparisons.

1. Prepare the environment

Complete Installation. Real scenes and episodes also require Episode Download and Satellite Scene Download.

python -m pip install -e '.[applications]'

The viewer opens an OpenCV window and requires a graphical desktop. Over SSH, configure X11 forwarding and a valid DISPLAY.

2. Run the bundled examples

The repository includes a synthetic GeoTIFF and two episodes.

Free scene navigation:

python -m applications.satsim_viewer free

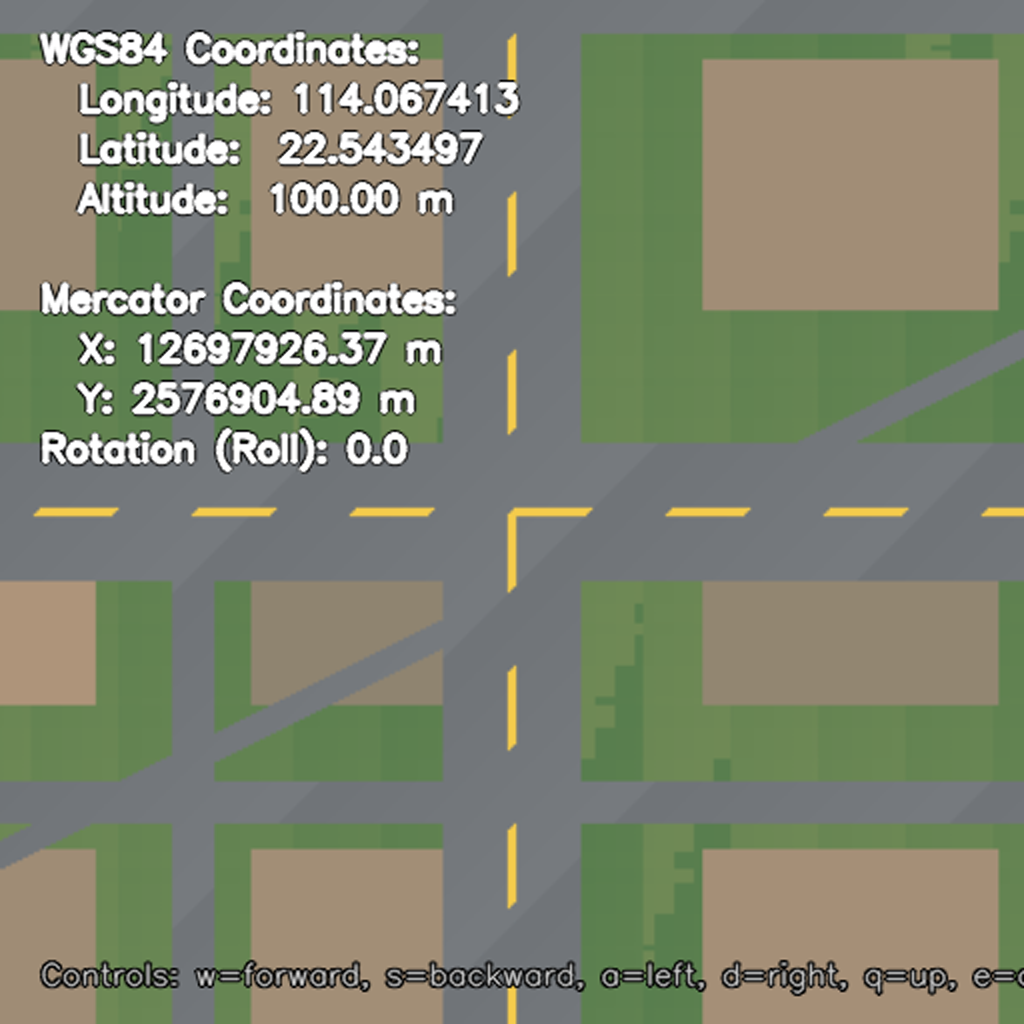

Free viewer renders the synthetic GeoTIFF and displays WGS84, Web Mercator, camera altitude, and heading.

View VLN episodes:

python -m applications.satsim_viewer task

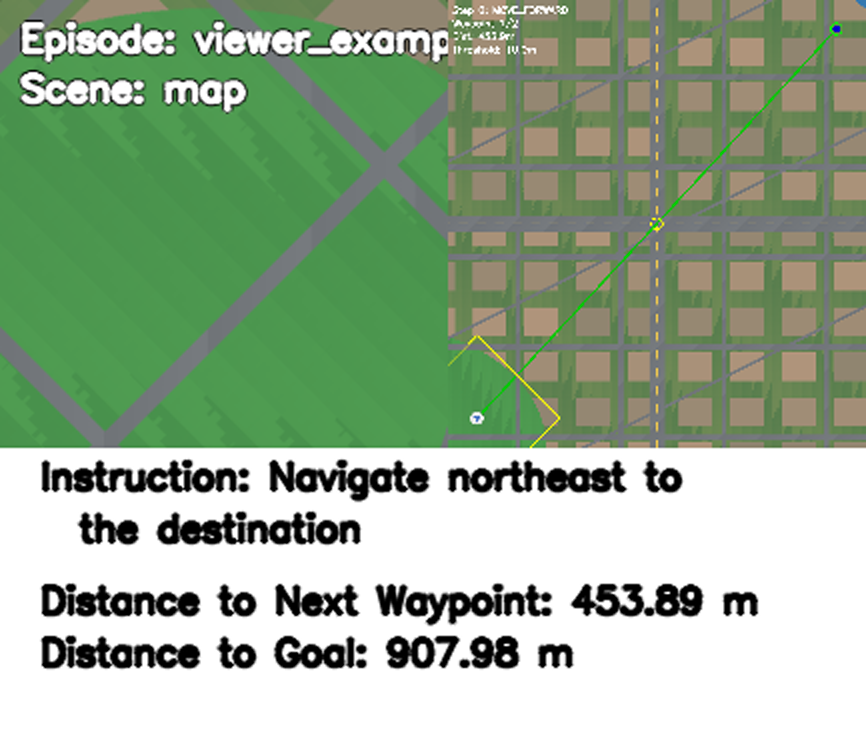

Task viewer shows RGB on the left; agent, waypoint, and reference path on the right; and instruction and distance below.

With no mode, the command defaults to free:

python -m applications.satsim_viewer

3. Inspect a custom GeoTIFF

Copy the free-viewer configuration to an ignored local file:

mkdir -p .local
cp applications/satsim_viewer/config.yaml .local/satsim_viewer_free.yaml

Set TIF_PATH and adjust movement, camera, or initial altitude as needed:

TIF_PATH: /absolute/path/to/Geneva-1.tif

SIMULATOR:
  FORWARD_STEP_SIZE: 30
  TURN_ANGLE: 15
  RGB_SENSOR:
    WIDTH: 512
    HEIGHT: 512
    HFOV: 90

AGENT:
  ALTITUDE: 100.0
  ROTATION: 0.0
  ALTITUDE_STEP_SIZE: 10.0

python -m applications.satsim_viewer free \
  --config .local/satsim_viewer_free.yaml

Free viewer starts at the scene center and displays both WGS84 and Web Mercator coordinates.

4. Inspect real episodes

Configure paths:

export SATNAV_DATA_ROOT="$PWD/data/satnav_datasets/SatNav-v0.1"
export SATNAV_SCENES_DIR="$PWD/data/satnav_datasets/scenes"
export SATNAV_EPISODES_PATH="$SATNAV_DATA_ROOT/episodes/train/all_episodes.json"

Copy the example task configuration:

mkdir -p .local
cp applications/resources/satnav_example_task.yaml \
  .local/satsim_viewer_task.yaml

Replace its DATASET block with:

DATASET:
  TYPE: SatNav
  SPLIT: train
  DATA_PATH: ${oc.env:SATNAV_EPISODES_PATH}
  SCENES_DIR: ${oc.env:SATNAV_SCENES_DIR}

Then run:

python -m applications.satsim_viewer task \
  --config .local/satsim_viewer_task.yaml

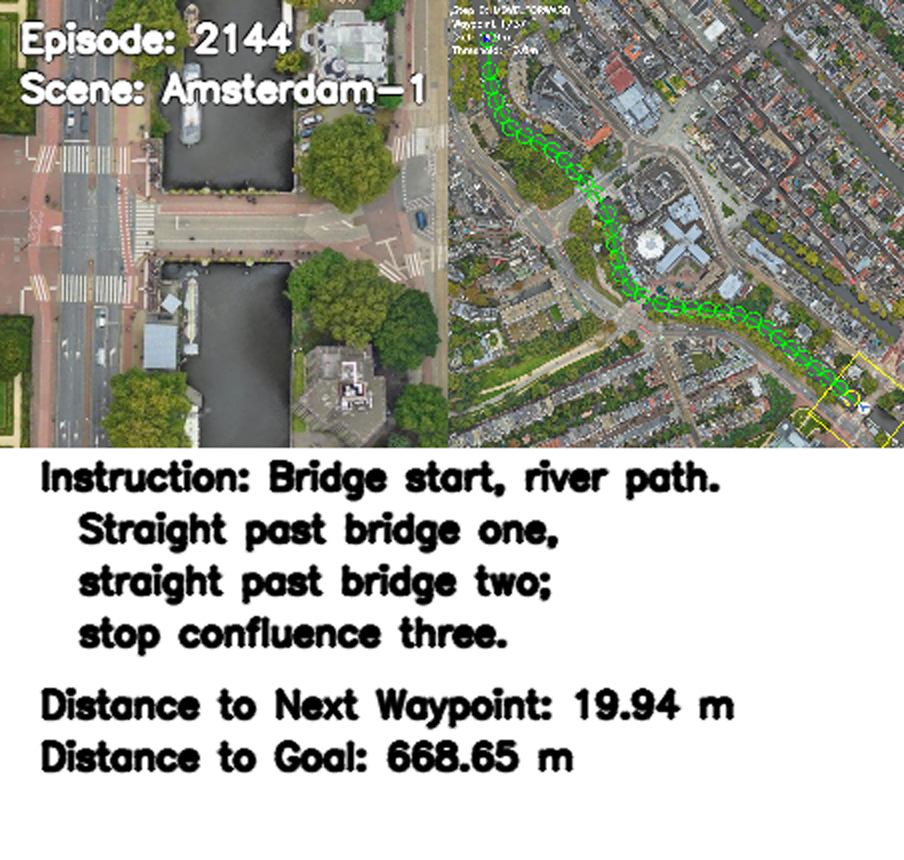

Amsterdam-1 episode 2144: current RGB on the left, full reference path and waypoint on the right, and the instruction below.

Scene files must be named <scene_id>.tif. Task viewer displays the current instruction, distance, RGB, and top-down map. After STOP, it shows Success, SPL, Distance to Goal, and Path Length before loading the next episode.

5. Keyboard controls

Free viewer

Key	Action
W / S	Move forward / backward
A / D	Turn left / right
Q / E	Raise / lower camera altitude
P	Save the current view
Esc	Exit

Task viewer

Key	Action
W	Move forward
A / D	Turn left / right
T	Toggle the top-down map
Space	Execute STOP and show episode metrics
Esc	Exit

Keyboard input targets the OpenCV window. Click the window first if keys do not respond.

6. Screenshots

Press P in free viewer to write a PNG with coordinates and state to the repository output/ directory. The filename includes timestamp, coordinates, altitude, and heading. output/ is ignored by Git.

7. Troubleshooting

Why can OpenCV not open a window?

The viewer needs a graphical desktop. Over SSH, configure X11 forwarding and DISPLAY. Headless compute nodes cannot show the interactive window directly.

Why do I get TIF file not found?

Verify the GeoTIFF path in the viewer config. Machine-local paths belong in a local config or CLI argument, not a public configuration.

Why can the agent not move farther?

The camera footprint may be near the scene boundary. Change direction or lower the altitude so the rotated view remains within the GeoTIFF bounds.

Why is the initial view outside the scene?

Lower AGENT.ALTITUDE or use a larger GeoTIFF. Higher altitude requires a larger ground footprint.

Why can Task viewer not find an episode scene?

SCENES_DIR must contain a GeoTIFF named for the logical scene_id, for example Amsterdam-1.tif for scene_id: Amsterdam-1.

SatSim stores agent state in WGS84 and renders observations from EPSG:3857 GeoTIFFs.
